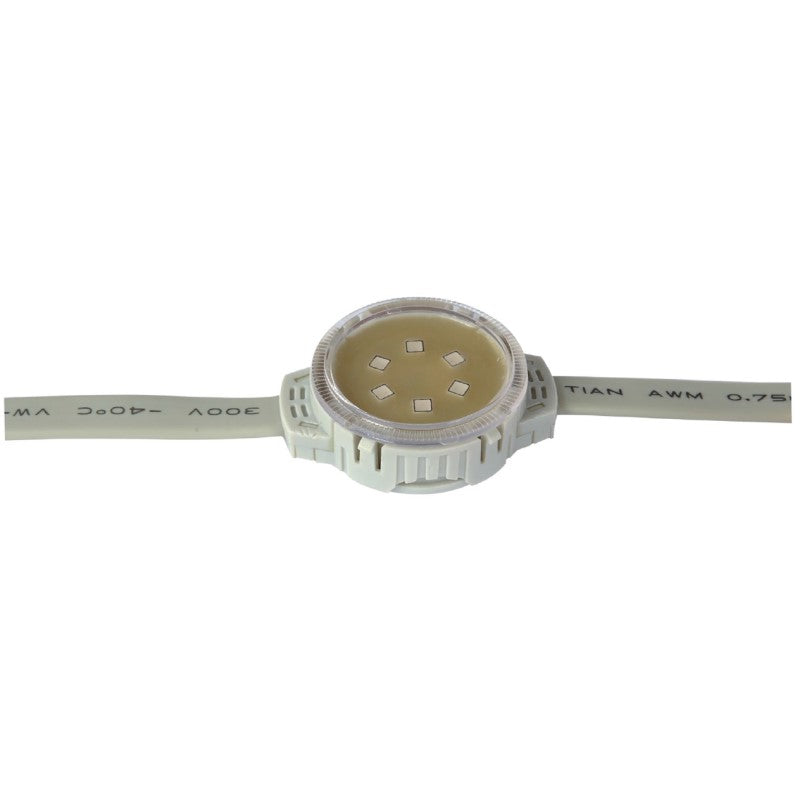

Product Overview

Why Choose

• Ultra-Durable PC Construction: Made entirely from PC (polycarbonate), a material resistant to impact, UV rays, and corrosion. Combined with secondary encapsulated internal waterproofing, it achieves IP65 rating, ensuring reliability in rain, dust, and extreme temperatures (-20°C to 55°C).
• Vibrant & Customizable Lighting: Equipped with premium CREE/OSRAM/LUMILEDS LEDs in R/G/B/W/RGB/RGBW options, delivering vivid, consistent color. Choose from 0.6W (3 LEDs), 1.2W (6 LEDs), or 1.5W (7 LEDs) to match brightness needs for subtle accents or bold displays.
• Flexible Control & Design: Supports "always on," TTL serial, and DMX512 protocols for static lighting or dynamic effects (e.g., color transitions, animations). Customize light color, points per meter, string length, and bracket color to fit project requirements.
• Easy Integration: Compatible with DC12V or DC24V power supplies, and featuring PC waterproof connectors for secure wiring. Perfect for both small-scale DIY projects and large commercial installations.
• Long-Lasting Performance: CE and RoHS certified, with a 30,000+ hour lifespan and stable constant-current/constant-voltage driving—minimizing maintenance and replacement costs.

Key Specifications

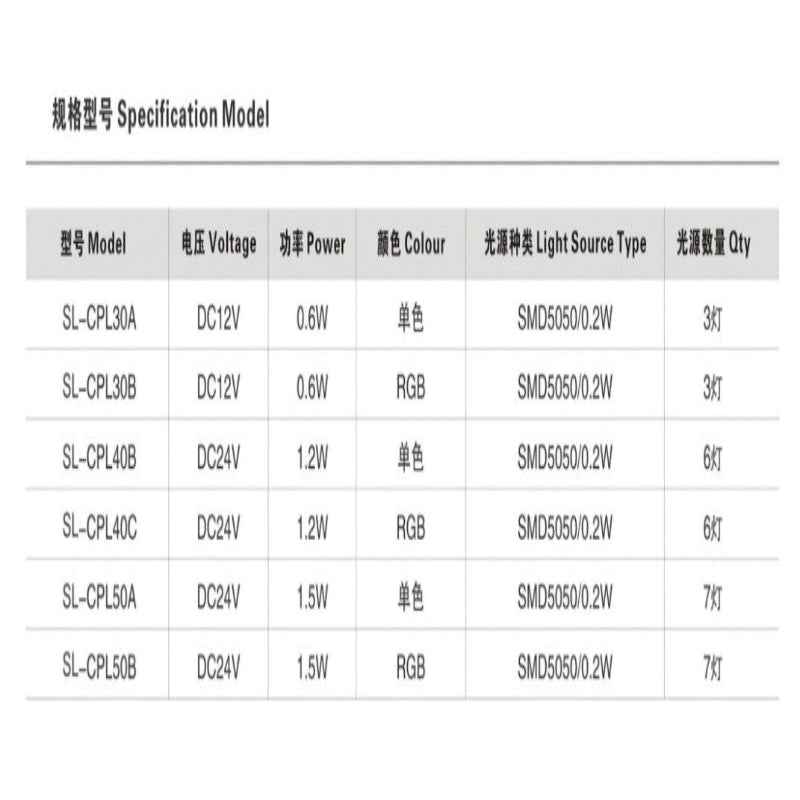

• Model: SL-CPL40 series (SL-CPL30A/B, SL-CPL40B/C, SL-CPL50A/B)
• Material: Full PC body
• Power Options: 0.6W, 1.2W, 1.5W
• Input Voltage: DC12V (0.6W models) or DC24V (1.2W/1.5W models)
• Light Source: SMD5050 (0.2W) LEDs
  • 0.6W: 3 LEDs
  • 1.2W: 6 LEDs
  • 1.5W: 7 LEDs
• Light Colors: R (red), G (green), B (blue), W (white), RGB, RGBW
• Control Modes: Constant on, TTL serial, DMX512
• IP Rating: IP65 (waterproof, dustproof)
• Operating Environment:
  • Temperature: -20°C to 55°C
  • Humidity: 10%–90%
• Cable: PC waterproof connectors (secure, weather-resistant)
• Certifications: CE, RoHS
• Lifespan: ≥30,000 hours

Product Highlights

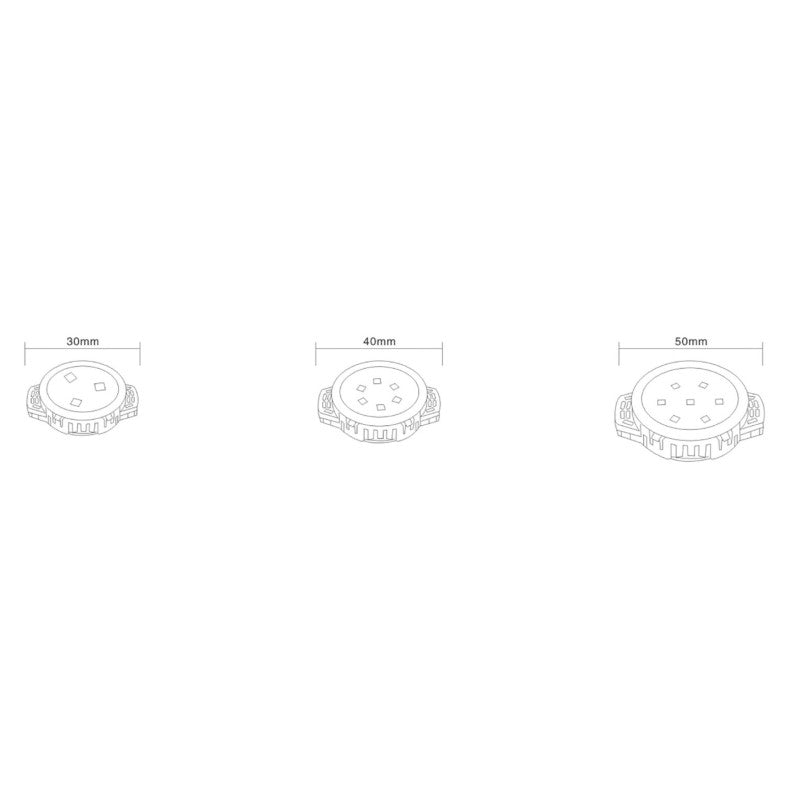

• Precision Contour Lighting: Small size (30mm/40mm/50mm) allows for tight spacing, creating smooth, continuous lines on building edges, bridges, or curtain walls—ideal for highlighting architectural details.
• Dynamic Visual Effects: With DMX512/TTL control, it supports animated patterns, color fades, or synchronized displays—perfect for festivals, brand promotions, or nighttime events.
• Lightweight & Easy to Install: PC body is lightweight, simplifying mounting on various surfaces (walls, facades, brackets). Customizable bracket colors ensure it blends with surroundings.
• Weather Resistant: UV-stable PC material and IP65 waterproofing withstand harsh outdoor conditions, from coastal humidity to freezing temperatures.
• Versatile Applications: Suitable for commercial spaces (hotels, nightclubs), public areas (parks, bridges), and advertising (billboards, digital displays)—adding both functionality and visual appeal.

How to Use

1. Installation:
   • Ensure power is off before starting. Mount the pixel lights using custom or standard brackets, spacing them according to your design (customizable points per meter).
   • Connect the PC waterproof connectors to a DC12V or DC24V power supply (matching the model’s voltage). For DMX512/TTL control, link to a compatible controller via signal cables.
   • For longer runs, connect multiple strings using extension cables (sold separately).
2. Operation:
   • Constant on mode: Power on directly for steady illumination.
   • DMX512/TTL mode: Program the controller to set colors, animations, or effects (refer to the controller manual for synchronization).
3. Maintenance:
   • Clean the PC surface periodically with a soft, damp cloth to remove dust or debris (avoid abrasive cleaners).
   • Inspect connectors annually to ensure a tight, waterproof seal.
