Product Overview

Why Choose

• All-Weather Durability: Features a die-cast aluminum body and tempered glass surface, with sealed wiring and full-structure waterproofing to achieve IP65 rating. Resists rain, dust, and extreme temperatures (-20°C to 55°C), ensuring reliable performance in harsh outdoor conditions.
• Versatile Power Options: Available in 5W, 9W, 12W, 18W, 24W, and 36W to suit diverse needs—from accenting small signs to lighting large plazas. All models run on AC220V, ensuring easy integration into standard electrical systems.
• Vibrant & Consistent Lighting: Equipped with premium CREE/OSRAM/LUMILEDS LEDs in R/G/B/W colors, delivering bright, uniform light with stable output. Enhances visibility and aesthetics for bridges, buildings, billboards, and stage sets.
• Customizable Design: Choose from custom body colors and light colors to match brand identities or environmental themes, ensuring seamless integration into any project.
• Long-Lasting Performance: CE and RoHS certified, with a 30,000+ hour lifespan and constant-current driving for flicker-free operation—reducing maintenance and replacement costs.

Key Specifications

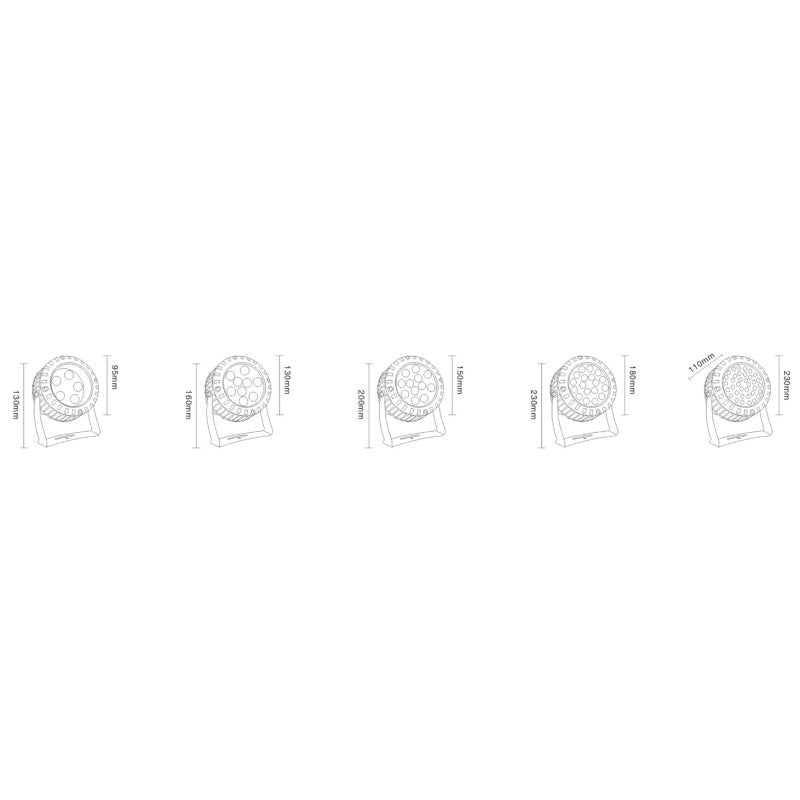

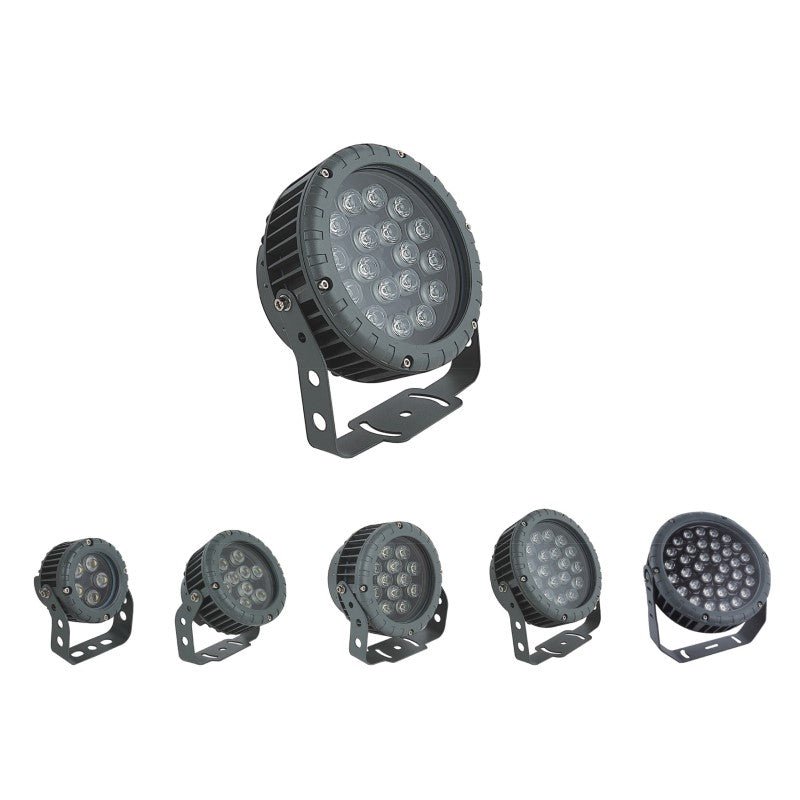

• Model: SL-CPL180 series (SL-CPL95A, SL-CPL130A, SL-CPL150A, SL-CPL180A/B, SL-CPL230A)
• Material: Die-cast aluminum body, tempered glass light-emitting surface
• Power Options: 5W, 9W, 12W, 18W, 24W, 36W
• Input Voltage: AC220V
• Light Source: SMD3030 (1W) LEDs
  • 5W: 5 LEDs
  • 9W: 9 LEDs
  • 12W: 12 LEDs
  • 18W: 18 LEDs
  • 24W: 24 LEDs
  • 36W: 36 LEDs
• Light Colors: R (red), G (green), B (blue), W (white)
• Control Mode: Constant on (steady illumination)
• IP Rating: IP65 (waterproof, dustproof)
• Operating Environment:
  • Temperature: -20°C to 55°C
  • Humidity: 10%–90%
• Cable: Copper aviation plug connector (secure, weather-resistant)
• Certifications: CE, RoHS
• Lifespan: ≥30,000 hours

Product Highlights

• Multi-Scene Application: Perfect for urban beautification (bridges, plazas, streets), commercial signage, stage backdrops, and architectural accent lighting—adds both functionality and visual appeal.
• Easy Installation: Lightweight design and universal AC220V compatibility simplify mounting on walls, poles, or brackets (not included). The copper aviation plug ensures a secure, waterproof connection.
• Energy Efficiency: LED technology reduces power consumption compared to traditional floodlights, lowering operational costs while maintaining high brightness.
• Low Maintenance: Corrosion-resistant materials and sealed components minimize upkeep. With a 30,000+ hour lifespan, replacements are infrequent—saving time and resources.
• Uniform Illumination: Optimized LED layout ensures even light distribution, avoiding hotspots and dark areas for professional-grade results.

How to Use

1. Installation:
   • Ensure power is off before starting. Mount the fixture to the target surface (wall, pole, or bracket) using appropriate hardware.
   • Connect the copper aviation plug to an AC220V power supply, ensuring a tight, waterproof seal.
   • Adjust the angle to focus light on the desired area (e.g., signage, building facade, or landscape feature).
2. Operation:
   • The fixture operates in constant-on mode: power on to activate steady illumination. No complex controls required—ideal for continuous use.
3. Maintenance:
   • Clean the tempered glass surface periodically with a soft, damp cloth to remove dust or debris (avoid abrasive cleaners to prevent scratches).
   • Inspect the aviation plug annually to ensure a secure connection and maintain IP65 waterproofing.
