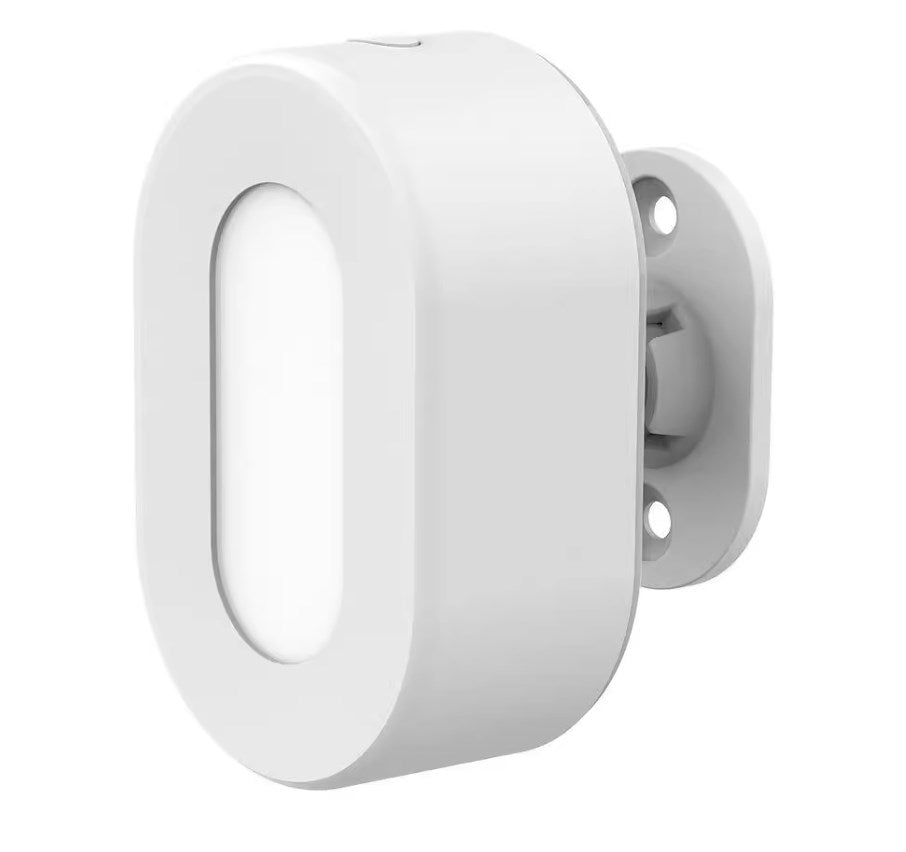

Infrared detector, smart home human body sensor, infrared alarm
Infrared detector, smart home human body sensor, infrared alarm
Couldn't load pickup availability
Core Parameters
Model: KZB-IR0-002
Control Protocol: ZigBee (2.4GHz)
Detection Range: 8 meters
Detection Angle: 30°
Trigger Distance: 23±5mm
Low-Voltage Alert: Supported
Power & Environment
Operating Voltage: DC 3V (CR123A battery)
Temperature Range:
Operation: -10°C to 55°C
Storage: -25°C to 55°C
Physical Design
Dimensions: 72×46×29mm

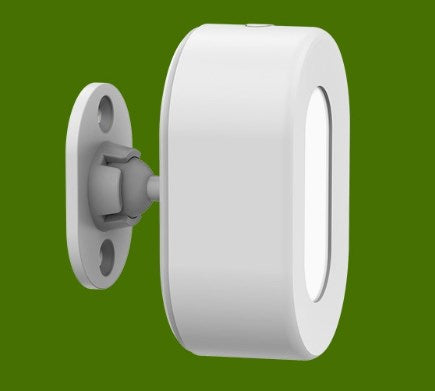

Installation: 3M adhesive wall-mount & ceiling-mount
Warranty: 1 year
Key Features
Precision Detection: Narrow 30° beam for targeted monitoring
Battery-Saving: Voltage alert prevents sudden power loss
Versatile Mounting: Dual installation options for flexible placement
Need ZigBee pairing instructions or sensitivity calibration details? Let me know!
