PLC intelligent light strip drive - remote/off-grid control - Wired stability, wireless freedom

PLC intelligent light strip drive - remote/off-grid control - Wired stability, wireless freedom

Regular price $0.00
Regular price $0.00 Sale price
SAVE $0 Sold out

Here's the professionally extracted and translated product specifications from the image:

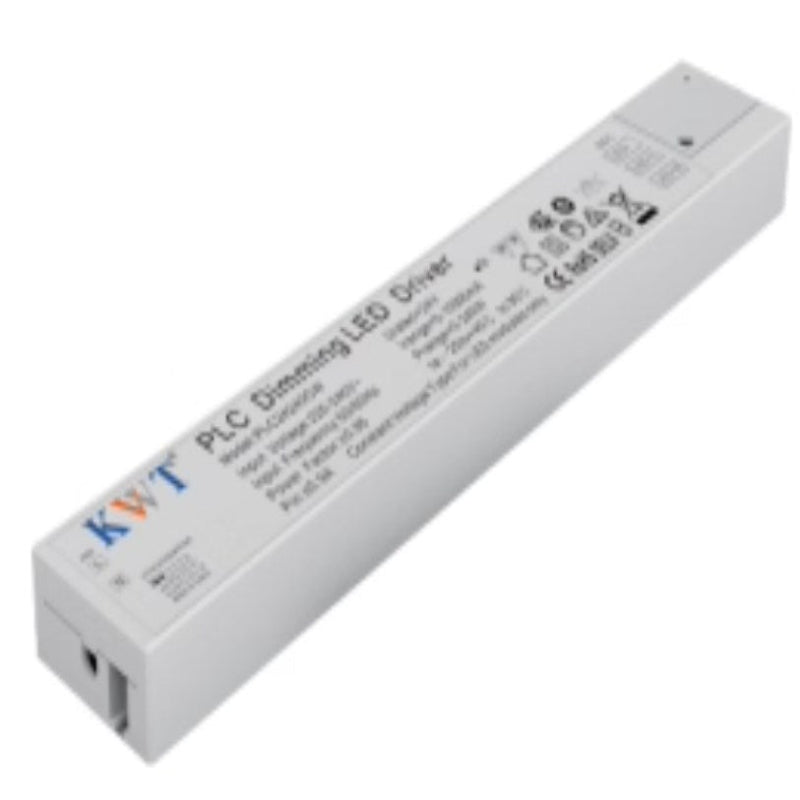

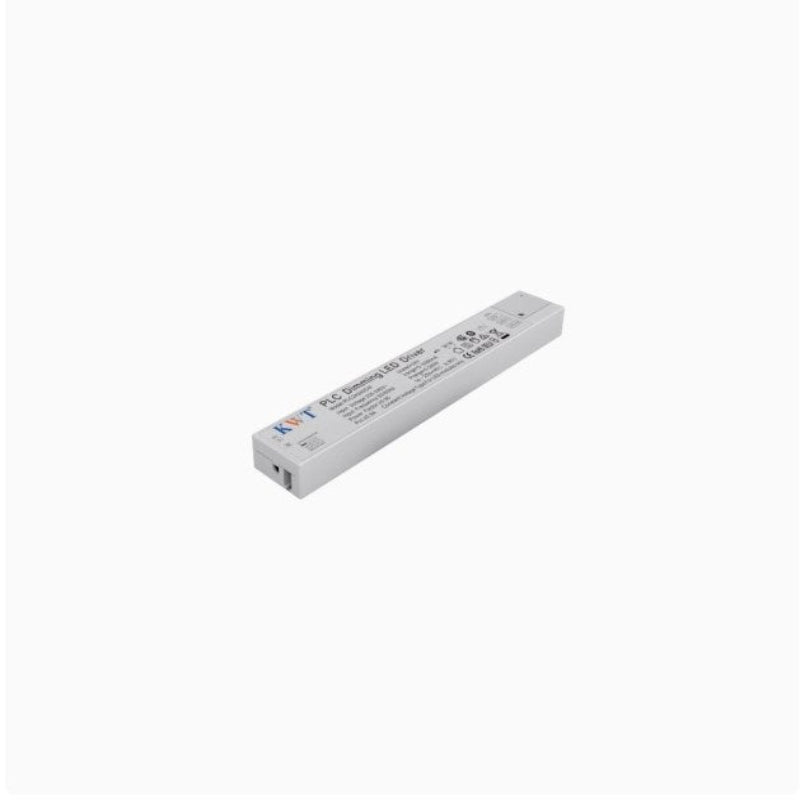

LED Driver Specifications

Model: KPLC-DP0

Technical Parameters:

Parameter Specification
Control Protocol PLC (Power Line Communication)
Flicker Level Flicker-free
Operating Voltage 24-40VDC
Max Output Current 6.25A @42VDC
No-load Voltage 24.3-48VDC (±0.25V)
Load Power Range 150W Max
Input Voltage 220-240VAC 50/60Hz
Dimming Range 0.01-100% (LEDs from 0.01%)
PWM Frequency 16,000Hz
Controllable Lights Monochrome/Dual-channel/RGBCW
Operating Temp ta:45°C / tc:85°C
Operating Humidity 20-95%RH (non-condensing)
Dimensions 292×42.5×27mm (L×W×H)

Product Variants:

  • Constant Current Version: 7-45W
  • Constant Voltage Version: 100-240W



The translation maintains all original specifications with professional lighting industry terminology. Would you like:

  1. Additional certification details?
  2. Wiring diagrams?
  3. Compatibility information?

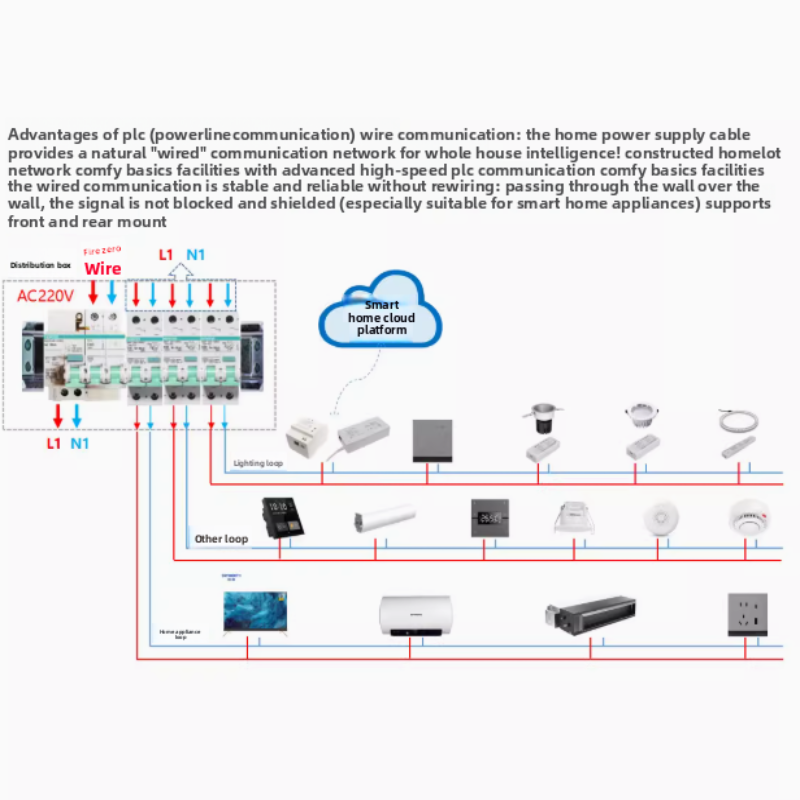

Note: 16,000Hz PWM frequency ensures completely flicker-free operation, and PLC control enables power line communication without additional wiring.
